Upper Cabinet Plans & Parts List

Building Sprinter van overhead cabinets? This upper cabinet plan is for the high-roof Sprinter 144 and 170 only. See how it sits with the microwave cabinet, galley, and lowers in our aluminum cabinet plans guide.

Plans for Upper Cabinet for Mercedes Sprinter (Approx. 90” long x 12” deep x 12” tall).

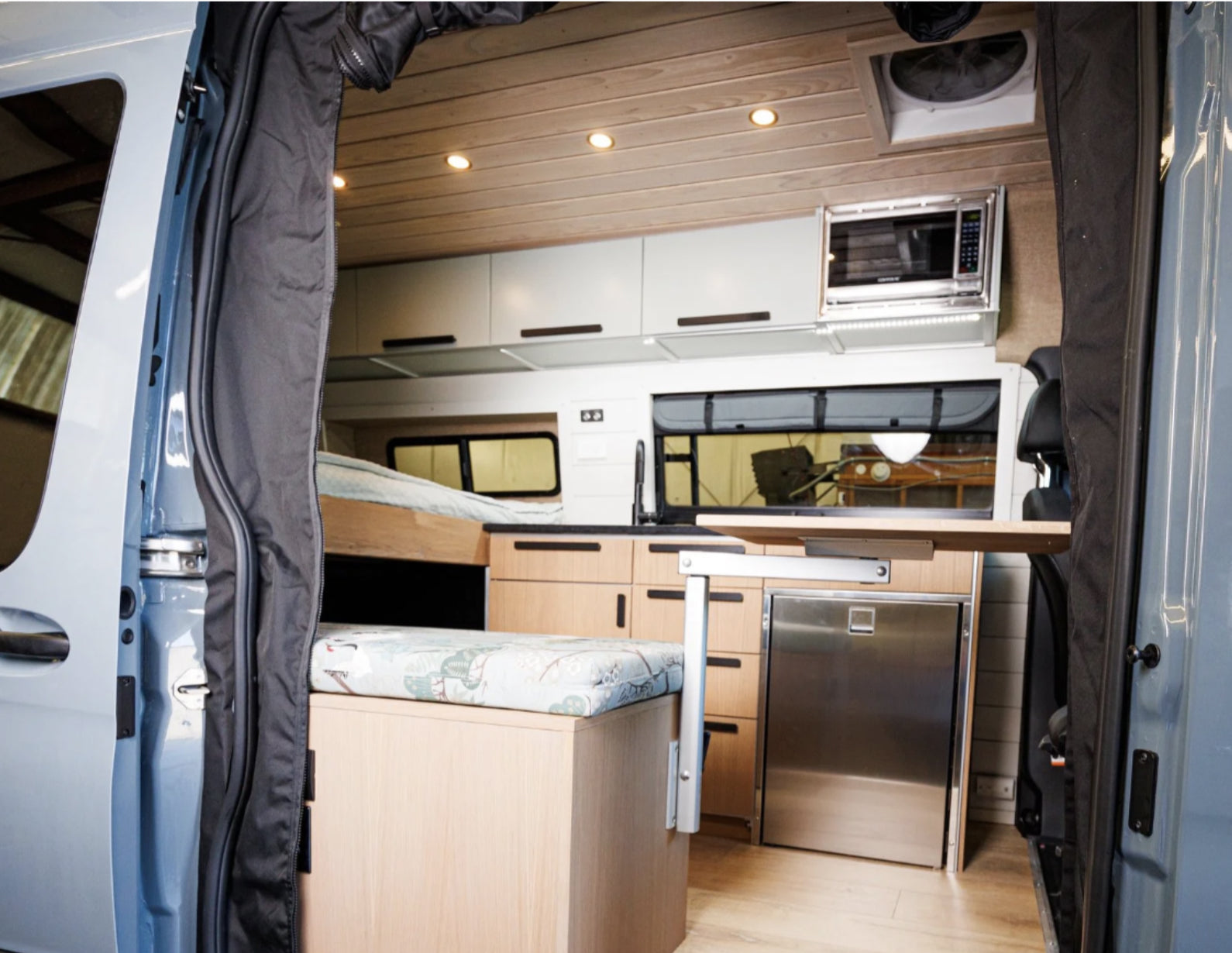

This upper cabinet is designed to work in conjunction with our Microwave cabinet on the driver side of your Sprinter 144 WB van, but will also work as a standalone cabinet or on the passenger side of a Sprinter 170 WB.

Need a different length of cabinet? You can easily adjust the length and openings by ordering shorter bars. The height and depth of cabinets do not change.

This is a digital download (PDF). Download materials include detailed drawings and assembly instructions plus a parts list for ordering extrusions (pre-cut to length) and all required hardware.

Our upper cabinet plans fit the high-roof Sprinter (144 and 170) only. They do not fit Transit or Promaster vans.

All sales are final. No refunds on digital products.
