Thrive Overland
Drop-in Electrical System
Drop-in Electrical System
Financing with Shop Pay? Choose Pay in full. One Shop Pay Installments plan covers the full amount. Not financing? Choose the 50% deposit and we’ll invoice the remaining 50% when your system is complete. (A deposit plus a financed balance would mean two separate payment plans.)
Couldn't load pickup availability
Payment options
Pay in full. Pay the full amount at checkout. Choose this if you’d like to use Shop Pay Installments.
50% deposit. Pay half at checkout to reserve your build. Choose this if you’re paying by cash or another payment that isn’t a plan. The balance is due before installation, or before the completed system is delivered or picked up. We invoice the final 50% when your system is complete.
Local pickup is at our Spanish Fork shop. Freight can be arranged upon request, price to be determined.
Most customers can install both the electrical and plumbing systems in a weekend.
The same electrical systems Thrive Overland builds in custom camper van and truck camper conversions. Designed and built by ABYC electrical technicians with marine-grade components. Built to order. Typical lead time about 4–6 weeks.
Choose a Series: Essential ($11,950), Pro ($14,950), or Elite ($17,950).

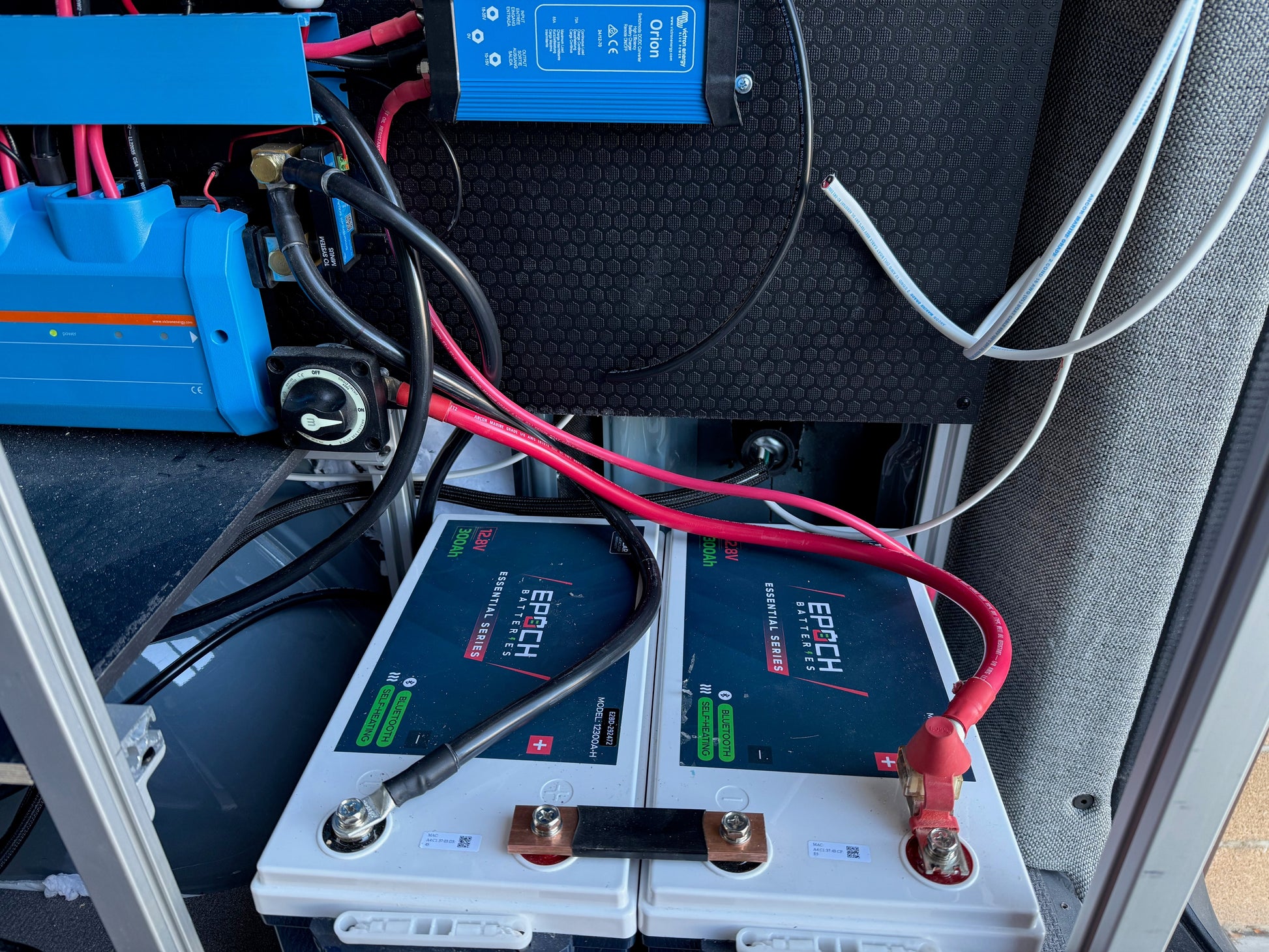

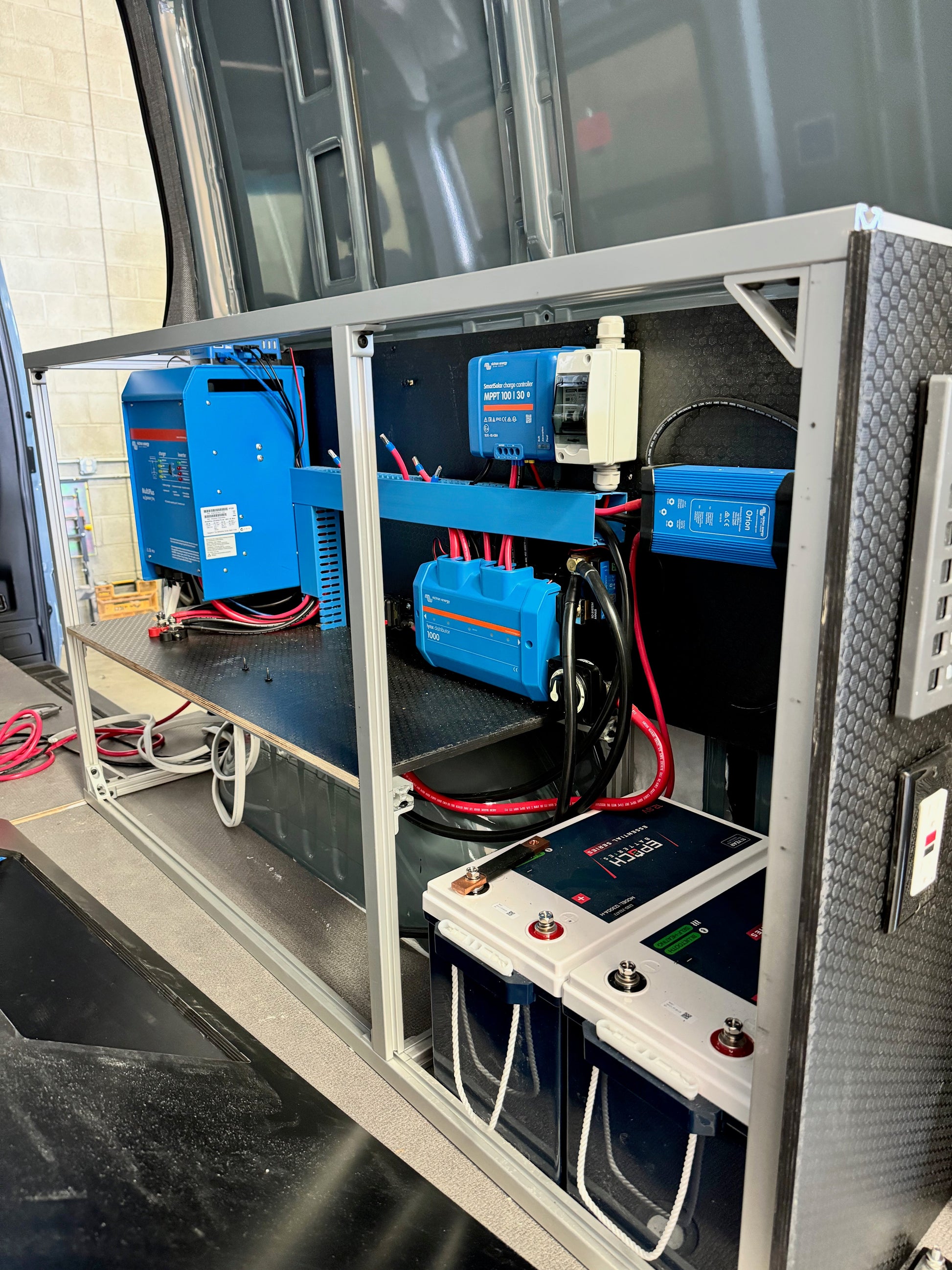

Essential Series — 12V 4.275kWh
- Extruded aluminum enclosure with Hex Ply covers
- Victron MultiPlus 12/3000 inverter/charger
- Epoch LiFePO4 battery: 4,275Wh (334Ah, 12V)
- One Victron Orion XS1400 DC-to-DC alternator charger (700 watts)
- Victron Smart Solar 100V/30A MPPT charge controller
- Victron Lynx Distributor
- Victron BMV-712
- Shore-power inlet and 30A-to-15A shore-power adapter
- Ancor marine cabling and tinned-copper lugs
- 120 V breaker panel / 12 V fuse panel
- Three 120V 15A dedicated circuits
- Built-in 12-volt socket, USB charging, and 120-volt outlet on the rear of the box
Pro Series — 24V 8.5kWh
- Extruded aluminum enclosure with Hex Ply covers
- Victron 3000W Multiplus inverter/charger
- Epoch LiFePO4 battery bank — 8,550Wh (668Ah 12-volt equivalent)
- Two Victron Orion XS1400 DC-to-DC alternator chargers (1,400 watts)
- Victron Smart Solar 100V/30A MPPT charge controller
- Victron Lynx Distributor
- Victron Comms (CANBUS) communication for DVCC control of charging
- Victron Cerbo GX and Victron Touch 70 screen
- Victron 24V-to-12V converter, 80A, for eight 12-volt circuits
- Shore-power inlet and 30A-to-15A shore-power adapter
- Ancor marine cabling and tinned-copper lugs
- Blue Sea AC breaker panel with 30A main input and four dedicated circuits
- Blue Sea DC fuse panel with eight circuits
- 24-volt dedicated breaker for a high-powered load such as DC air conditioning
- Three 120V 15A dedicated circuits and one 120V 20A dedicated circuit
- Built-in 12-volt socket, USB charging, and 120-volt outlet on the rear of the box
Elite Series — 24V 11.7kWh
- Extruded aluminum enclosure with Hex Ply covers
- Victron 3000W Multiplus inverter/charger
- Epoch LiFePO4 battery bank — 11,775Wh (920Ah 12-volt equivalent)
- 24V Arco secondary alternator (shipped to you; installing it in your van is not included) and a Zeus regulator, installed and connected in the system by us.
Want us to install the secondary alternator? Email us for a quote. - Trickle charge vehicle starter battery from house system
- Victron Smart Solar 100V/30A MPPT charge controller
- Victron Lynx Distributor
- Victron Comms (CANBUS) communication for DVCC control of charging
- Victron Cerbo GX and Victron Touch 70 screen
- Victron 24V-to-12V converter, 80A, for eight 12-volt circuits
- Shore-power inlet and 30A-to-15A shore-power adapter
- Ancor marine cabling and tinned-copper lugs
- Blue Sea AC breaker panel with 30A main input and four dedicated circuits
- Blue Sea DC fuse panel with eight circuits
- 24-volt dedicated breaker for a high-powered load such as DC air conditioning
- Three 120V 15A dedicated circuits and one 120V 20A dedicated circuit
- Built-in 12-volt socket, USB charging, and 120-volt outlet on the rear of the box
| Feature | Essential$11,950 | Pro$14,950 | Elite$17,950 |
|---|---|---|---|
| Extruded aluminum enclosure with Hex Ply covers | ✓ | ✓ | ✓ |
| Victron MultiPlus 12/3000 inverter/charger | ✓ | — | — |
| Victron 3000W Multiplus inverter/charger | — | ✓ | ✓ |
| Victron Smart Solar 100V/30A MPPT charge controller | ✓ | ✓ | ✓ |
| Victron Lynx Distributor | ✓ | ✓ | ✓ |
| Victron Cerbo GX | — | ✓ | ✓ |
| Victron 24V-to-12V converter, 80A, for eight 12-volt circuits | — | ✓ | ✓ |
| Shore-power inlet and 30A-to-15A shore-power adapter | ✓ | ✓ | ✓ |
| Ancor marine cabling and tinned-copper lugs | ✓ | ✓ | ✓ |
| Blue Sea DC fuse panel with eight circuits | — | ✓ | ✓ |
| 24-volt dedicated breaker for a high-powered load such as DC air conditioning | — | ✓ | ✓ |
| Three 120V 15A dedicated circuits | ✓ | ✓ | ✓ |
| Built-in 12-volt socket, USB charging, and 120-volt outlet on the rear of the box | ✓ | ✓ | ✓ |
| Epoch LiFePO4 battery: 4,275Wh (334Ah, 12V) | ✓ | — | — |
| One Victron Orion XS1400 DC-to-DC alternator charger (700 watts) | ✓ | — | — |
| Victron BMV-712 | ✓ | — | — |
| 120 V breaker panel / 12 V fuse panel | ✓ | — | — |
| Two Victron Orion XS1400 DC-to-DC alternator chargers (1,400 watts) | — | ✓ | — |
| 24V Arco secondary alternator (shipped to you; installing it in your van is not included) and a Zeus regulator, installed and connected in the system by us. Want us to install the secondary alternator? Email us for a quote. | — | — | ✓ |
| Victron Comms (CANBUS) communication for DVCC control of charging | — | ✓ | ✓ |
| Victron Touch 70 screen | — | ✓ | ✓ |
| Blue Sea AC breaker panel with 30A main input and four dedicated circuits | — | ✓ | ✓ |
| One 120V 20A dedicated circuit | — | ✓ | ✓ |
| Epoch LiFePO4 battery bank — 8,550Wh (668Ah 12-volt equivalent) | — | ✓ | — |
| Epoch LiFePO4 battery bank — 11,775Wh (920Ah 12-volt equivalent) | — | — | ✓ |
| Trickle charge vehicle starter battery from house system | — | — | ✓ |
Shipping & pickup: Ready to ship / pickup typically 4–6 weeks. Choose local pickup at checkout (Spanish Fork shop — 1942 N. Main Street). Freight can be arranged upon request, price to be determined.
